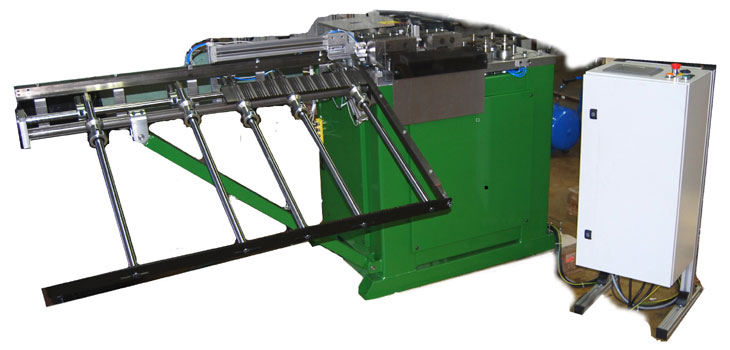

Fully automatic cut to length machine for bow saw blades

Technical description

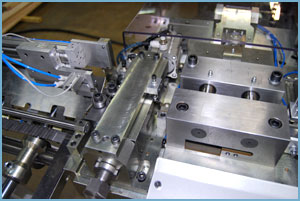

The band is fed from the decoiler to the blade Feeding system. The feeding is done by four servo motor driven wheels. The machine and magazine can handle blade between 12” up to 42”. The punching is done with a pneumatic press. At the punching operation the tang and the holes are formed with hardened die cutters mounted on a pillar stand. Length of the blades is chosen by the touch panel. Blade parameters can be stored as recipes and can easy be recalled.

The machine can be ordered in two different models. CK – 101: One punching tool. The blades can be uneven regarding positions of teeth. CK – 102: Two punching tools. All blades will be cut equal regarding the positions of teeth. Choose this option if you would like to avoid cutting into a tooth. The cuts will always be in the tooth gullets. Technical data Speed: appr. 750 pcs, 21” / H Band: 20mm x 0,7 Blade length: 12” – 42” (magazine) Air pressure: 6,3 bar PLC / Servo: Mitsubishi
